Soil volume measurement system

System Summery

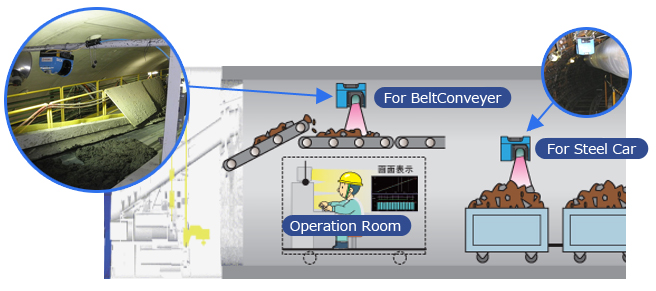

The volume of excavated soil is calculated by a laser scanner installed on a belt conveyer.

Features

POINT

1

Indirect measurement by laser scanner

POINT

2

Real-time continuous measurement

POINT

3

Can be used in combination with screw conveyer and earth pressure measurement

Main Specification

Indirect measurement by laser scanner

The Laser scanner can measure the excavated soil without coming in contact with it directly. Reduce damages to hardware by indirect measurement rather than direct measurement.

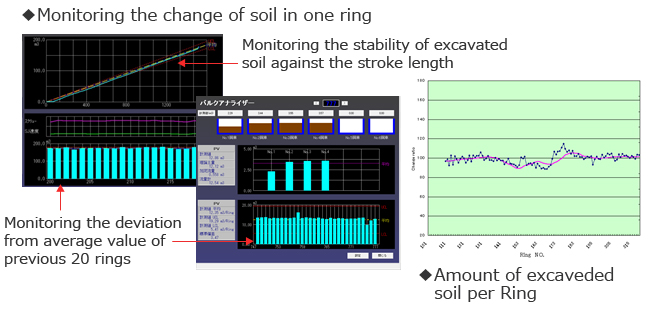

Real-time continuous measurement

Rapid laser function of the scanner enables continuous measurement.

Can be used in combination with screw conveyer and earth pressure measurement

Ensure consistency with the number of revolution on screw conveyer and the amount of soil on earth pressure measurement.

Effecting from installation

Safe and effective construction is possible by real-time continuous measurement and completely eliminating the requirement to come in contact with the excavated material.
